2-3 TPH Mash Feed Plant
This plant has been designed for farmers and feed mill owners who are having low height of their existing feed mill and want to get more output. This plant can be installed in height of 15 ft. of feed mill for 1000 kgs/batch mixer.
In Grind Mix Plant with Horizontal Mixer, we have to shut down the grinder and screw conveyor for the time of mixing and discharging of mixer.
In this plant, a storage tank is given over feed mixer which keep on storing one batch of ground material coming out of grinder with the help of second screw conveyor.
When mixer is discharged, next batch of ground ingredients is quickly taken into it from batch bin.
| Model | Capacity/ Batch | Grinder in Plant | Mixer in Plant | Screw Conveyor in Plant | Height of Roof Required | Output / hour | Power |
| LCFP-5 | 9 ft. | 13 ft. | 12 ft. | 9 ft. | 2 ft. | 1500 Kg | 12 H.P. |
| LCFP-10 | 10 ft. | 14 ft. | 14 ft. | 9 ft. | 2 ft. | 3000 Kg | 28 H.P. |

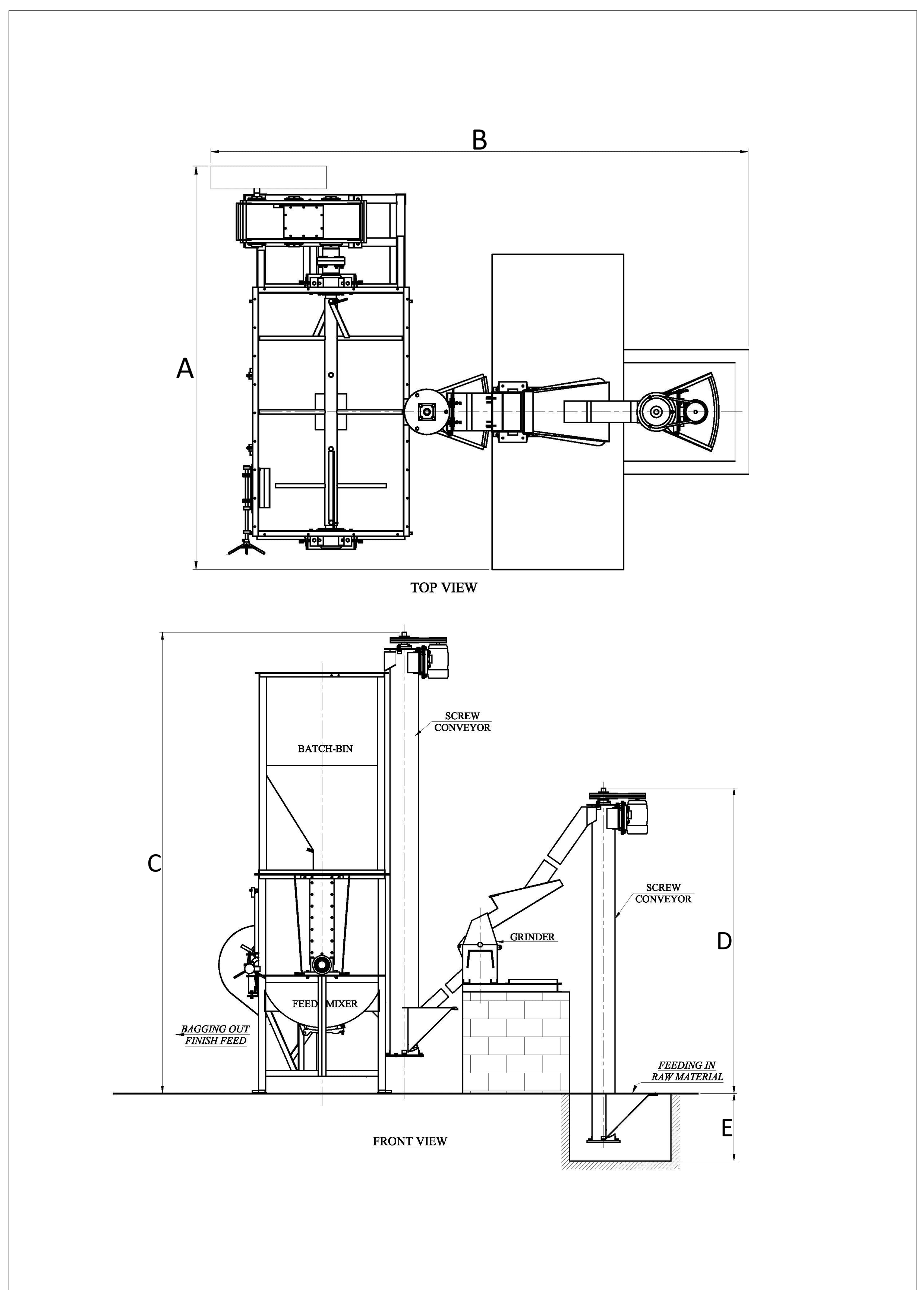

| Dimensions with | A | B | C | D | E |
| LCFP-5 | 9 ft. | 13 ft. | 12 ft. | 9 ft. | 2 ft. |
| LCFP-10 | 10 ft. | 14 ft. | 14 ft. | 9 ft. | 2 ft. |
